NAS Permission Levels in ShareBrowser Client

Project Locking Mode

When using an EVO volume in Project Locking Mode with ShareBrowser (see Adding a new NAS share in the EVO Guide), there are different options available than with an Unlocked volume.

A lock column will appear in ShareBrowser that will show icons for locked files.

_images/SB6_gallery_locks.png _images/SB6_list_locks.png

This will also make new options available in the right-click context menu.

These options include:

Lock: A Lock gives write permissions to this user and read-only permissions to everyone else.

_images/SB602_WriteLock.png

Lock and Open: Lock and Open will put a Lock on a file and open it.

_images/SB602_LockandOpen.png

Clear My Locks: Clear My Locks will remove all locks that this user holds on the local machine.

_images/SB602_ClearLocks.png

Release Lock: This appears when right-clicking a locked file by your user. Release Lock will only remove the lock on the chosen file.

_images/SB615_ReleaseLocks.png

Request Unlock: If a file is locked, you can request an unlock. ShareBrowser will display a prompt to that user informing them of the request, which they can accept or deny.

_images/SB615_RequestUnlock.png _images/SB6_RequestUnlockAlert.png

Clear Locks on Exit

When exiting ShareBrowser Client while Project files are locked, a dialogue will appear about locked files.

_images/SB6_ExitLocks.png

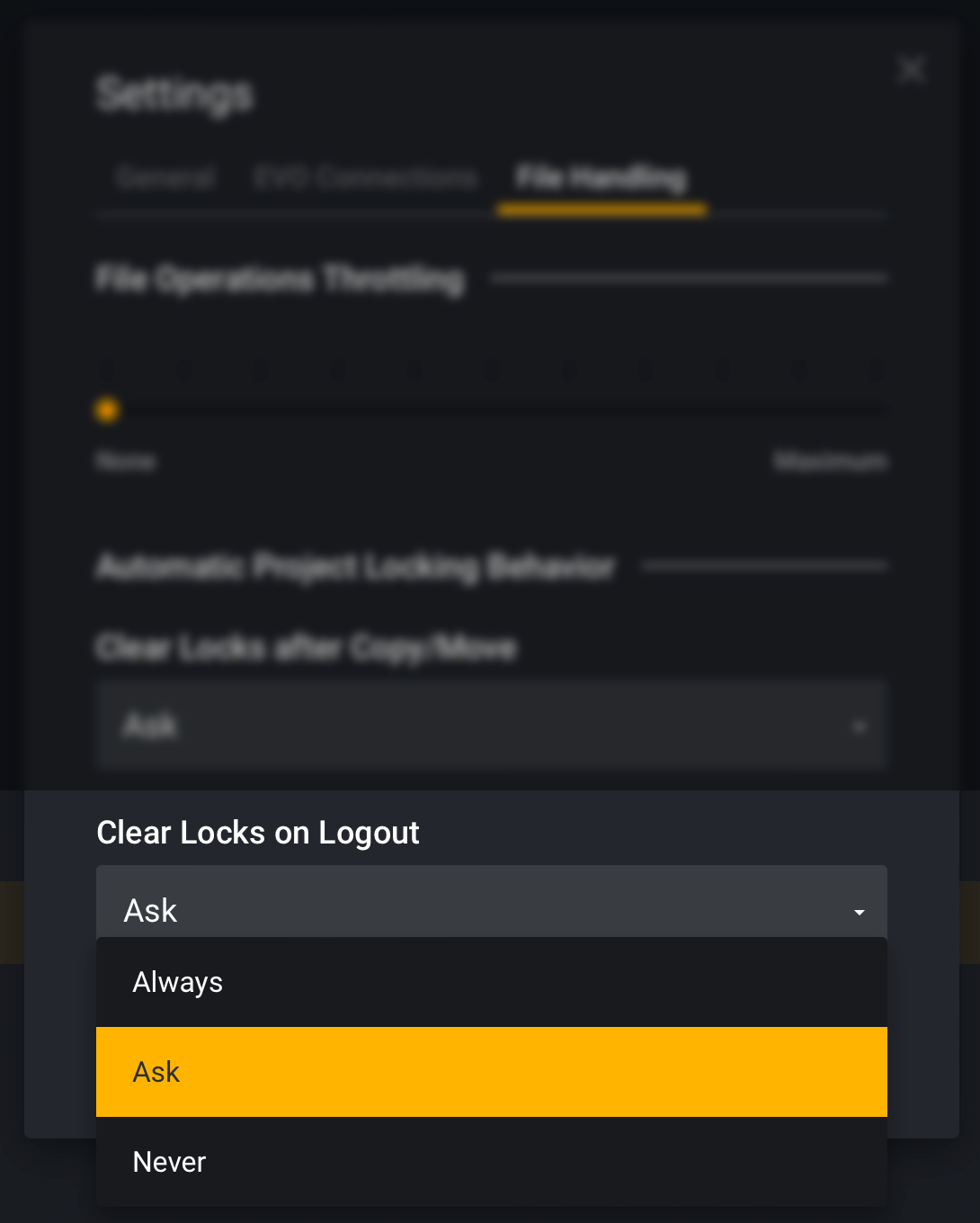

The options will be given to clear locks or keep them, including a checkbox to “Always choose this option.”

This can be toggled at any point from within Settings.

_images/SB71_ExitLocks.png

Clear Locks on Copy/Move

When you copy/paste, or move files around Project Locking shares that would normally be locked files, you will have the option to leave them locked or release the locks after the copy/move.

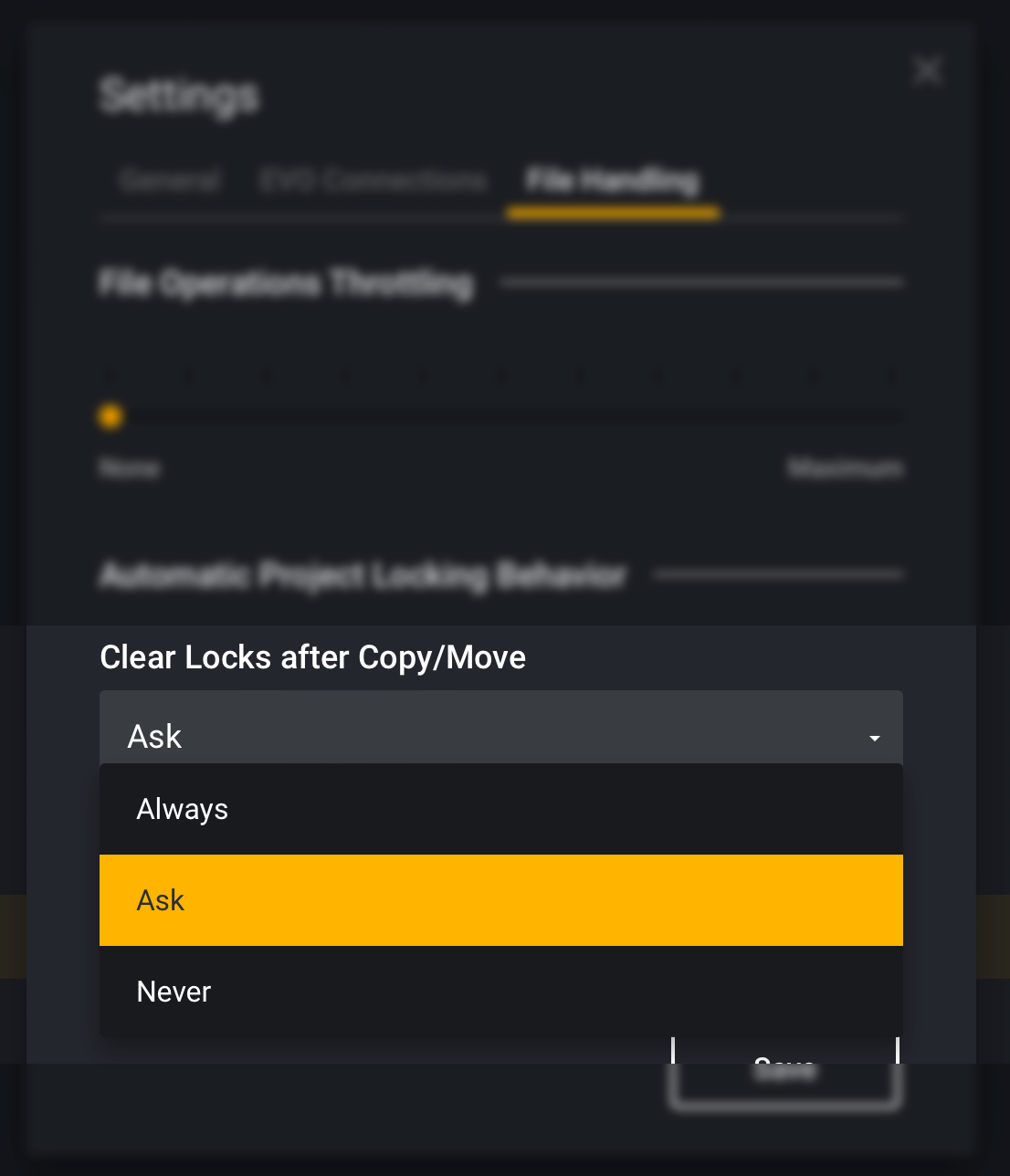

This can be configured in the Settings as well.

_images/SB71_PrefClearLocksCopy.png

Advanced Permission with ACLs

Note

The overall permission model changed in EVO v7. Over SMB alone(in Finder/Explorer/etc.) ANY user can mount ANY share. The files they can access, however, will be based on their permissions to the share or to the files/folders (when using ACLs). In ShareBrowser, the shares that users see (and in turn can mount) are based on their permission to the root of the share. When a volume is not mounted, users will see the metadata and proxies for all files to which they have access to the root of the share.

As of EVO version 7.1 and Slingshot version 1.6. It’s possible to limit offline metadata based on file permissions.

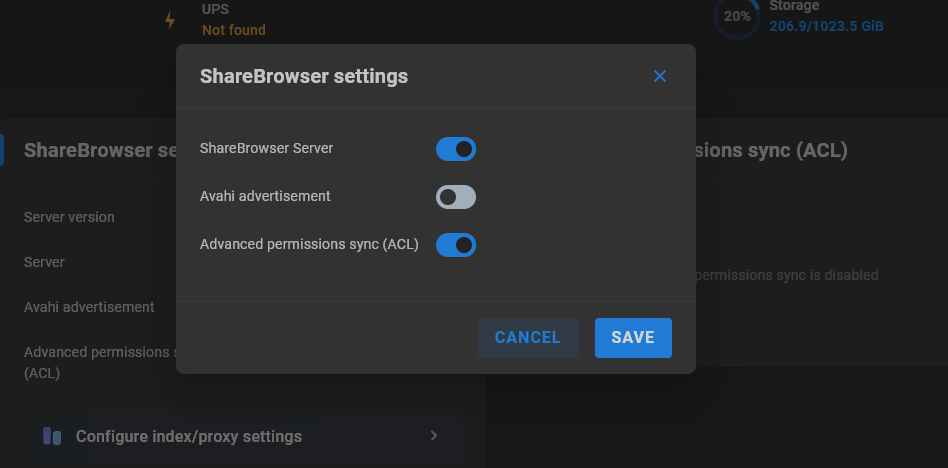

You can toggle Advanced ACL Permission sync on the ShareBrowser page of the EVO UI.

_images/SB71_ACL_Sync_On.png

Once this is enabled you can choose the shares for which you would like to index permissions.

_images/SB71_ACL_Sync_Shares.png

With these settings enabled, permissions in the ShareBrowser database will update to match file permissions on each index.
