Browsing a Share and Working with Files

ShareBrowser has two different views in which to navigate, Gallery View and List View.

Browsing in List View

In List View, files are represented by thumbnails and titles.

_images/SB615_ListViewMain.png

In List View, ShareBrowser will typically browse files just as Finder and Explorer would. A single-click on the plus sign will show the contents of a directory (minus will close it), while a double-click on a folder will navigate to that directory.

_images/SB6_plus_browse.png

To return to the previous folder(s), simply click the path along the top of the page or click the back button.

_images/SB615_breadcrumbs.png _images/SB6_back_button.png

Offline files will be transparent, while online files will be vibrant. For more on this see the section on Offline Files.

_images/SB6_online_offline_list.png

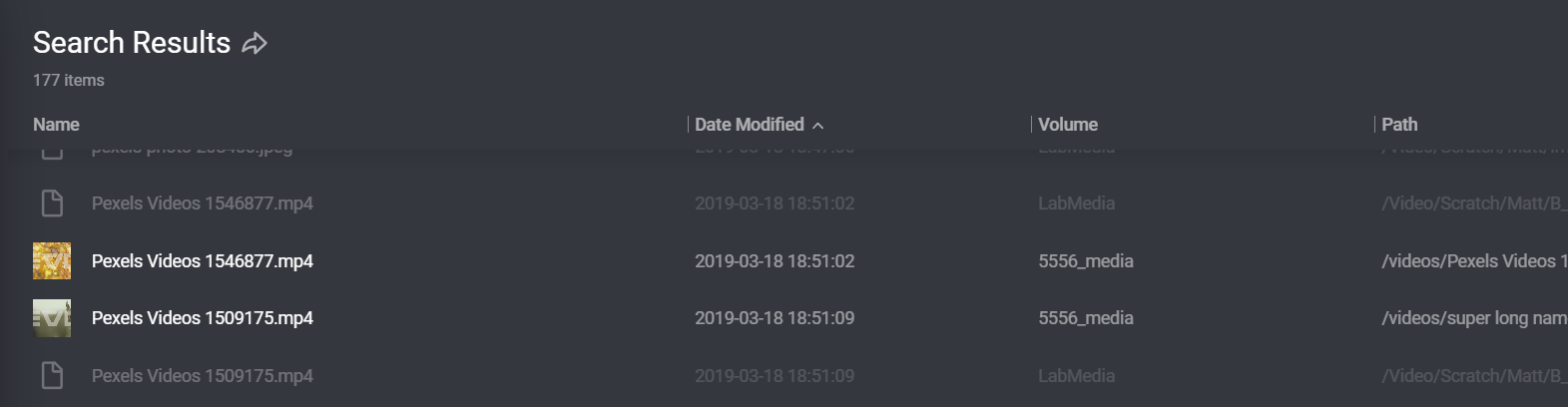

In list view, files can be sorted ascending or descending by Name, Date Modified, or Size by clicking the column headers.

_images/SB615_client_columnSort.png

Preview Files

To preview any files, simply press the spacebar. This will open a larger preview than that available in the Right Pane in the middle of the screen. To close this, press the spacebar again. This is also available for images.

_images/SB7_Preview.png

If a file cannot be previewed in ShareBrowser, double-clicking it will open the file in it’s default application. You can also right-click to choose an application

_images/SB7_open_with.png

Offline Files

Files in ShareBrowser can be either online or offline.

_images/SB6_online_offline_list.png

Files will typically be offline if the volume on which they’re located is offline, or if the file has been removed and the file is set as archived.

You can search across online and offline files and you can manipulate their tags, comments, and custom metadata.

However, to perform any actions on a file, such as copying, pasting, or renaming the file will need to be made online, by replacing it, or mounting the volume on which it’s located.

To quickly mount the volume, you can right-click the offline file and choose, Mount.

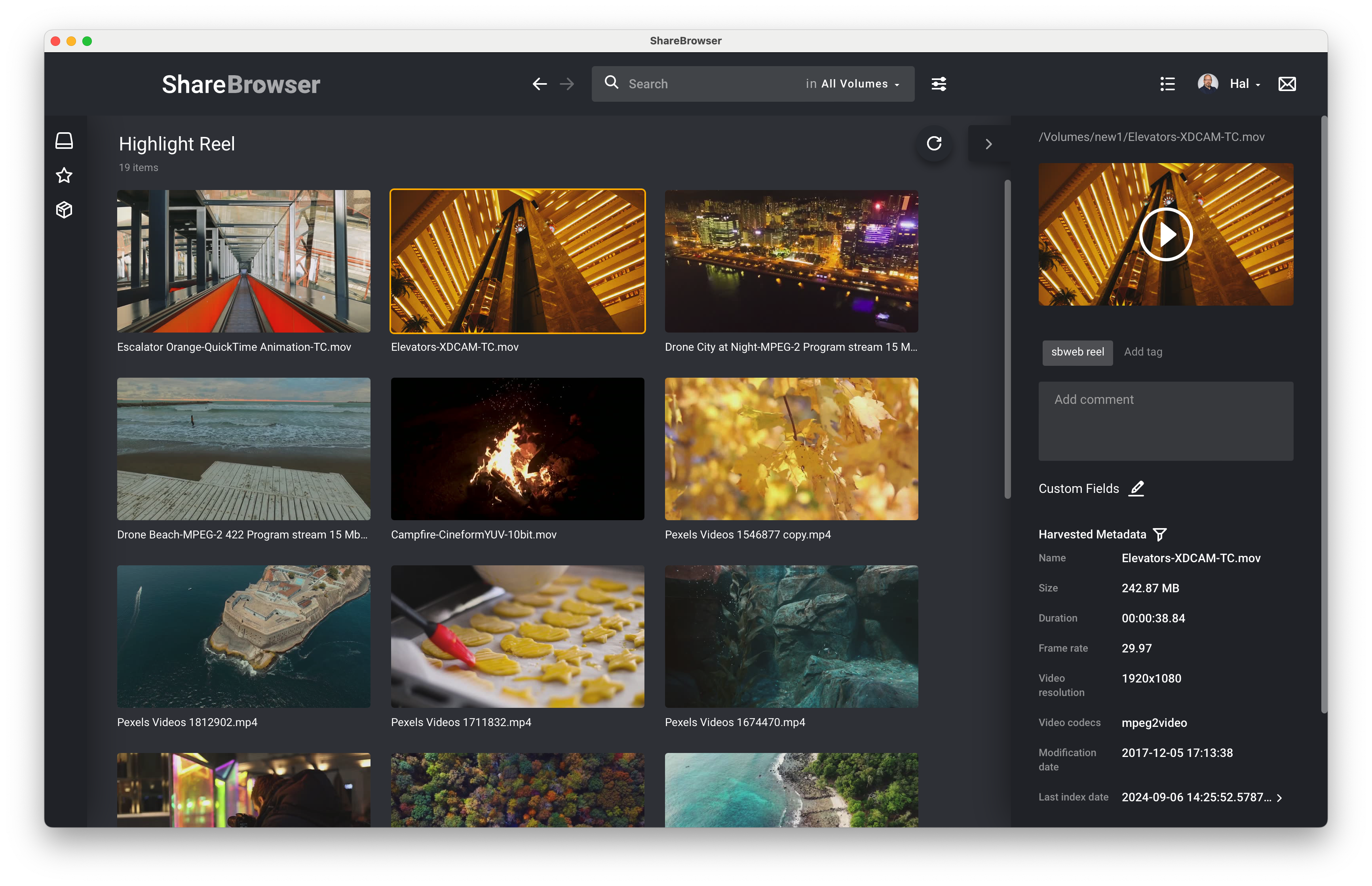

Highlight Reel

When logging into ShareBrowser, a user will first see a Highlight Reel. By default, this is 80 files at random that have proxies generated for them. This can be customized by tagging specific files to include with the tag sbweb reel.

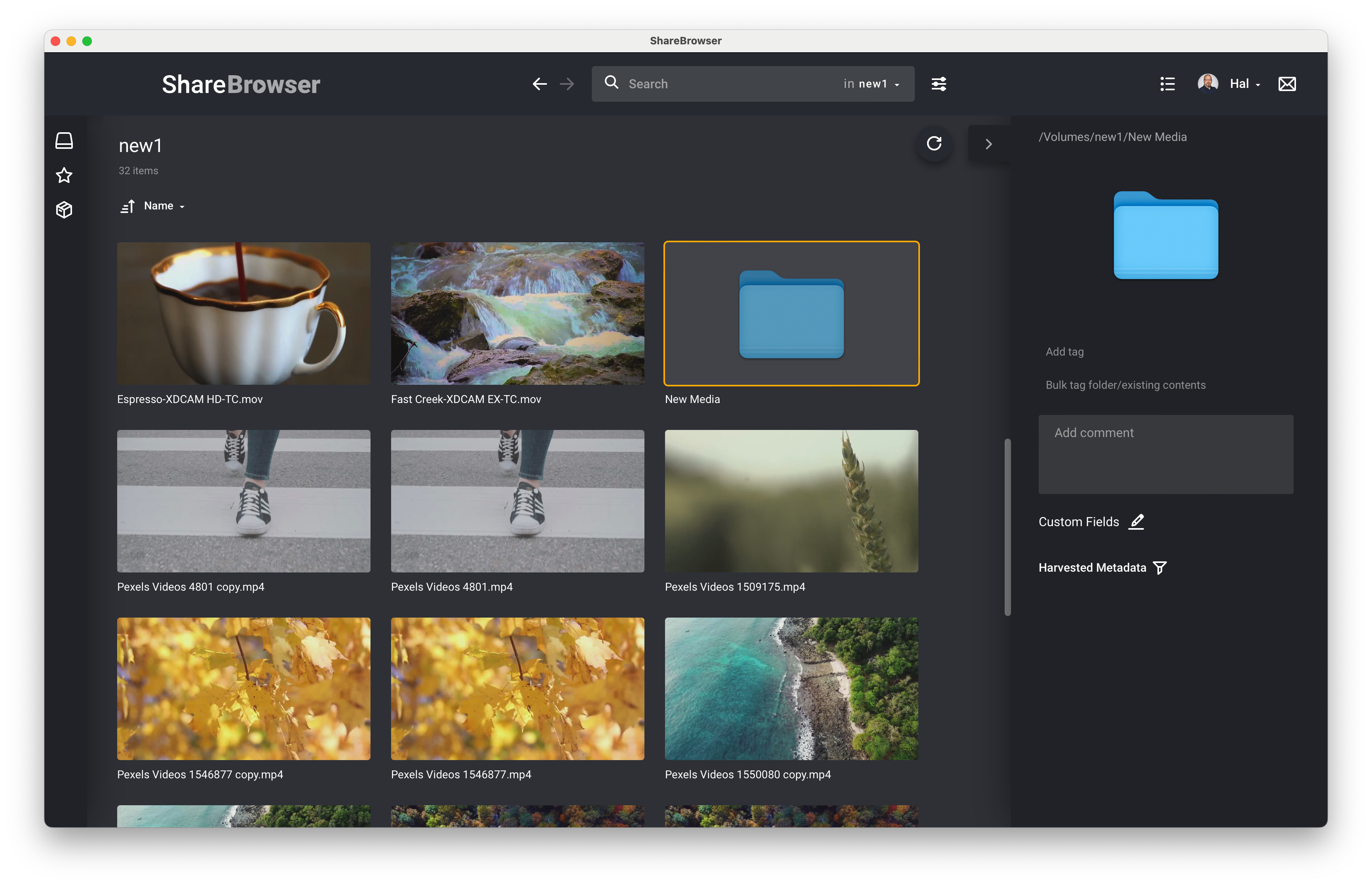

Creating a New Folder

To create a new folder within a directory, you can use the keyboard shortcuts, Shift+Command+n on macOS and Ctrl+Shift+n on Windows. You can also right-click and choose to add a folder.

_images/SB6_NewFolder.png

Refreshing ShareBrowser Client

There is a Refresh button for ShareBrowser that is located in the top right. This will update ShareBrowser in most cases such as when new files are added from another location.

_images/SB6_Client_Refresh.png

If ShareBrowser is not refreshing in a particular instance simply closing and reopening will clear the cache.

Copy, Paste, and Verify

ShareBrowser contains the same Copy and Paste functions available in Finder/Explorer; these can be accessed with the same keyboard shortcuts (Command+c, Command+v in macOS) (Ctrl+c, Ctrl+v in Windows).

ShareBrowser also contains another function to verify that the Copy and Paste command completed the full copy successfully. This can be accessed by the right-click context menu in ShareBrowser. You can right-click on the file(s) to copy, navigate to the directory to paste them into, and right-click again, this time choosing Paste & Verify.

_images/SB615_Client_PnV.png

This will verify that each file is copied completely.

Calculating and Verifying MD5 Checksums

MD5 Checksums are another useful way to verify that a full file was copied. An algorithm is run over the file to generate an MD5 checksum, and when it is run on the copied file it should create the same string of numbers and letters. This can be verified in ShareBrowser using the right-click context menu.

_images/SB6_checksum_all.png

There are two ways that this can be done. The first is by storing the MD5 sum to a file (choose Store MD5 sum to file). Next, copy the sum with the file. Then compare the new file to its corresponding MD5 (by selecting Verify MD5 sum from file).

_images/SB6_checksum_file.png

The other way is to Calculate the MD5 sum (choose Calculate MD5 sum) which will then give you the option to copy to your clipboard.

_images/SB6_checksum_copy.png

Then, to verify the MD5 sum, choose Verify MD5 sum. You can paste(ctrl+v/command+v) the copied MD5 sum into the input box and choose Verify.

_images/SB6_checksum_paste.png

In both scenarios, you will get a notification of whether the MD5 matches.

_images/SB6_checksum_match.png _images/SB6_checksum_fail.png

Renaming Files in Sharebrowser

To rename a file in ShareBrowser, right-click and choose Rename, or use the keyboard shorcuts F2 in Windows or Shift+Enter on macOS.

_images/SB6_browse_rename.png

Deleting Files in ShareBrowser

Deleting a file in ShareBrowser is much like removing files in Finder or Explorer. Simply choose the file(s) to remove and press “Delete” or choose “Delete” from the Right-Click context menu.

_images/SB6_browse_delete.png

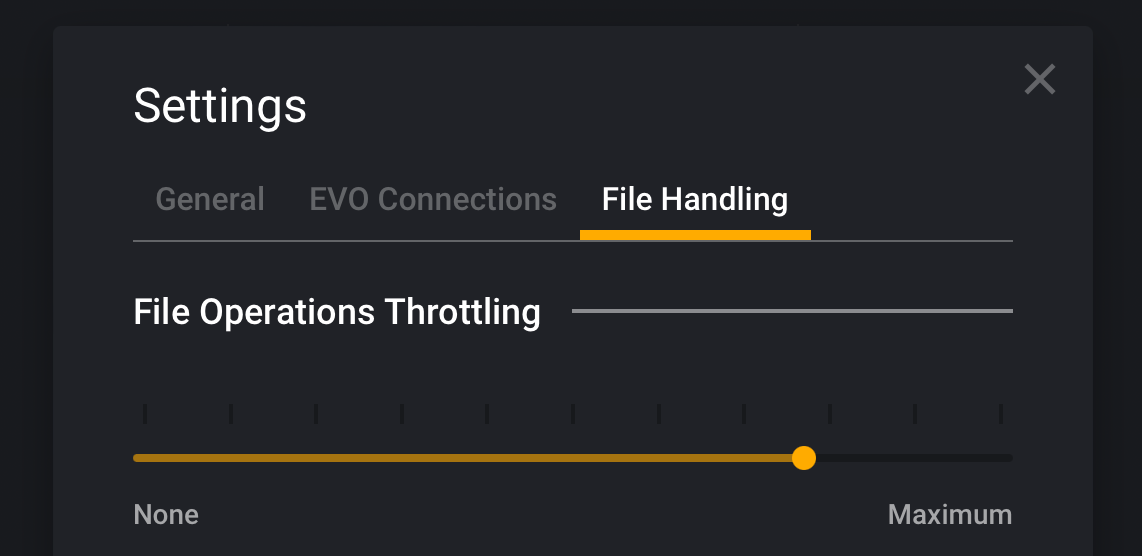

File Operations Throttling

ShareBrowser Client features the ability to throttle file operations to save network resources during large file copies.

In Preferences->File Handling there is a file operations throttling bar. When this is at “None” there is no throttling, while “Maximum” will throttle the copy down to as slow as possible.

This can be particularly useful when copying over a network, as it will save bandwidth on unbridled file copies.

_images/SB6_Client_Throttle.png

Viewing a File or Volume in Finder/Explorer

To view any file from ShareBrowser in the macOS Finder or Windows Explorer, simply right-click and choose Reveal in Finder (or Explorer).

_images/SB615_ClientReveal.png

You can also jump to any volume in Finder/Explorer by simply double-clicking the volume in ShareBrowser.
